40 Ton Loadhandler

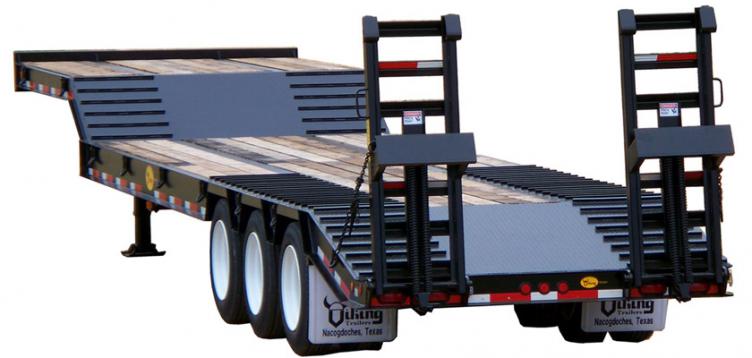

The Viking 40 Ton “Loadhandler” extends the limit for hauling heavy loads. The addition of the third axle extends the GVWR to 100,000 lbs. This trailer is widely used to accommodate a variety of heavy equipment hauling. With a 40 Ton Rating this trailer allows you to haul Dozers, Trac-Hoe’s, Articulating Loaders, Forklifts and Large frame Tractors. Like the 35 Ton “Loadhandler” this trailer has also proven itself in the Construction, Forestry and Petroleum industries as a 1st choice for transporting equipment and materials from jobsite to jobsite.

Features

Mainframe

16″ Fabricated beams, 1/2″ x 6″ top flange, 3/4″ x 6″ bottom flange with 1/4″ web welded on both sides. All flange material is high strength steel.

Crossmembers

8″ x 6.5# Jr. I Beam on 16″ centers

Kingpin

2″ SAE Kingpin, 3/8″ kingpin plate, 20″ kingpin setting, 84″ swing clearance

Siderails

12″ x 20.7# structural channel, 8″ x 8.5# structural channel on the neck

Suspension

HUTCH H9700TRI four point spring suspension with hi-arch heavy duty 3 leaf springs.

Axles

(3) 25,000 lb., 5″ round, 5/8″ wall

Brakes

16-1/2″ x 7″, Type 30/30 brake chambers, outboard drums, Meritor WABCO (4S/2M) ABS on two axles.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white)

Tires

255/70R x 22.5 Radials

Landing Gear

2 Speed gear with 62,500 lb. lift capacity 200,000 lb. static capacity (standard)

Finish

Shot blasted and painted with a high solid polyurethane paint. Colors: Black or red (Standard).

Floor

2″ nominal oak (standard), 1/4″ tread plate with 1″ traction bars over tandems. 1/4″ Smooth plate with 1″ traction bars on transition to the upper deck.

Lights

7-Way main receptacle, sealed wiring harness, rubbery mounted LED lights. 3 lights per side including midturn.

Tandem

Set at 134″ from the rear of the dovetail

Dovetail

5 ft. metal covered with 1/4″ tread plate and 1″ traction bars. (Optional open floor dovetail with inverted angle iron for self-cleaning).

Loading Ramps

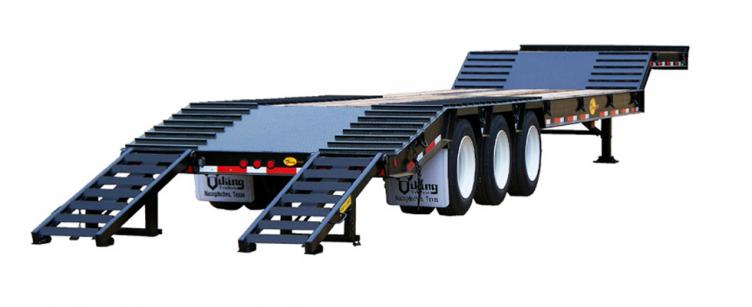

(2) 6′ Stand up ramps with double compression springs on each ramp that assist in raising and lowering

D-Rings

18 Total (4) 1″ on front deck; (14) 1″ on rear deck

Options

  • Single Point suspension
  • Air ride suspension
  • Flooring includes: apitong, shiplap pine and steel sheeting.
  • Fold-out outriggers
    Increase to 9′ wide
  • Longer or shorter trailer lengths
  • Hydraulic assisted ramps
  • Third ramp located in the center for 3-wheel machines
  • Between the beam toolbox
  • Epoxy primer and custom colors available
  • 4′-6″ Lay flat ramps

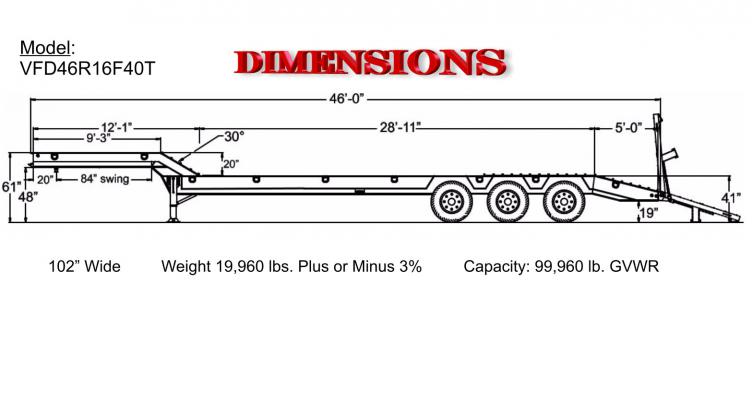

Model VFD46R16F40T
Capacity 40-Ton
Dimensions 46' L x 102" W
9'-3" upper deck
28'-11" lower deck load area
5' dovetail
30 degree drop
41" rear deck height
Approximate Weight 18900 lbs. +/- 3%
GVWR  100000 lb.
