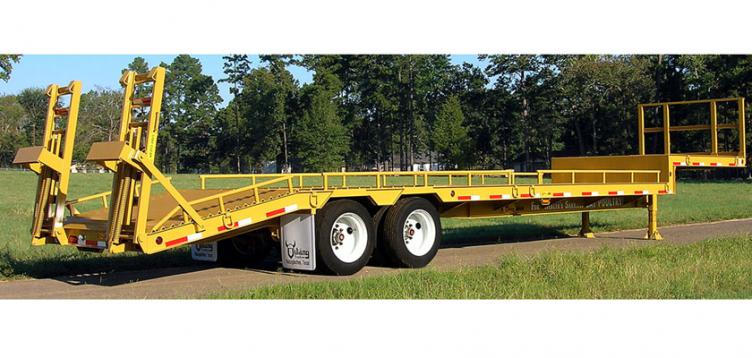

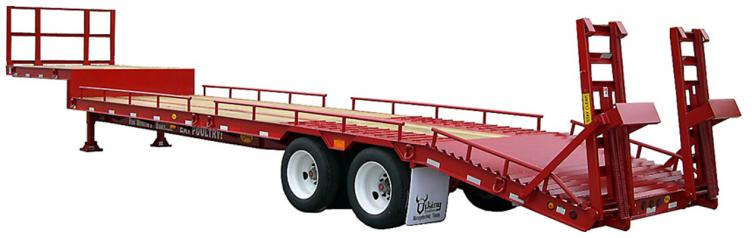

Equipment Transport Trailer


The Viking Equipment Transport Trailer was designed with a dual purpose in mind. This trailer has the ability to haul equipment and palletized material together. For example: in most situations the forklift that is used to load the freight can also be loaded on the trailer as well. The ability to deliver freight and have the machine on board to unload it is a must in materials handling. If your day depends on the amount of material and the ability to unload it, the Equipment Transport will fit the bill. Capacity: 80,000 lb. GVWR.

Features

Mainframe

16″ Fabricated beams, 1/2″ x 6: top flange, 3/4″ x 6″ bottom flange with 1/4″ web welded on both sides. All flange material is high strength steel.

Crossmembers

6″ x 3.7# Jr. I-beam on 16″ centers.

Kingpin

2″ SAE kingpin, 3/8″ king pin plate, 22″ kingpin setting (standard)

Siderails

8″ x 8.5# (inverted) structural channel

Suspension

HUTCH H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs.

Axles

(2) 25,000 lb., 5″ round, 5/8″ wall.

Brakes

16-1/2″ x 7″, Type 30/30 brake chambers, outboard drums, Meritor WABCO (2S/1M) ABS on one axle.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white)

Tires

255/70R x 22.5 Radials

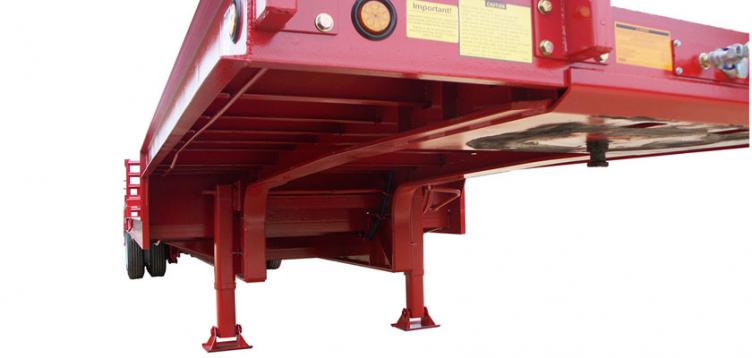

Landing Gear

Holland Mark B, 2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard)

Finish

Shot blased and painted with a high solid plyurethane paint. Colors: Black, red or cat yellow (standard)

Floor

1-1/2″ Shiplap treated pine (standard). 1/4″ treated plate with 1″ traction bars over tandems.

Lights

7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 lights per side, including mid-turn.

Tandem

Set at 132″ from the rear of the dovetail

Dovetail

6′-6″ Long; self-cleaning inverted angle iron

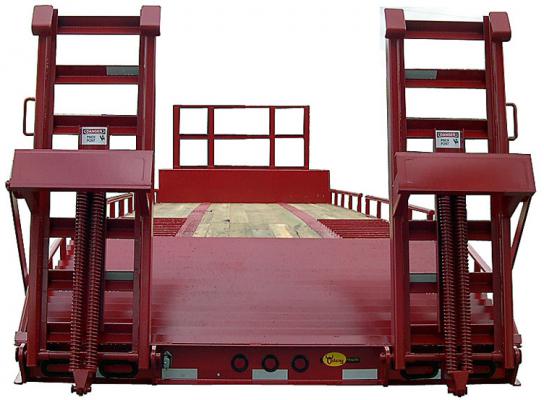

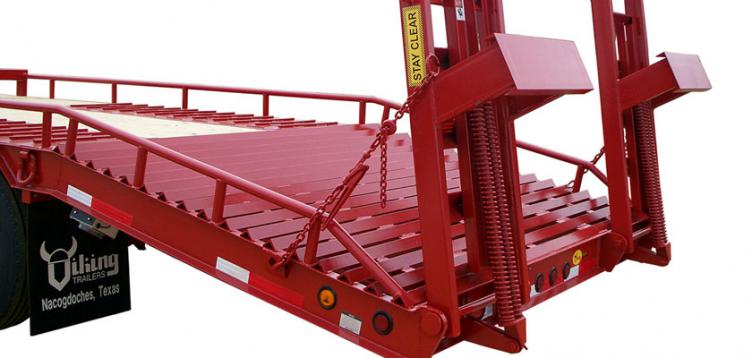

Loading Ramps

(2) 6′ Stand up ramps with double compression springs

D-Rings

(14) Total (4) 1″ on front deck, (10) 1″ on rear deck

Options

  • Flooring: apitong, steel
  • Third ramp for 3-wheel loader
  • Optional paint colors available

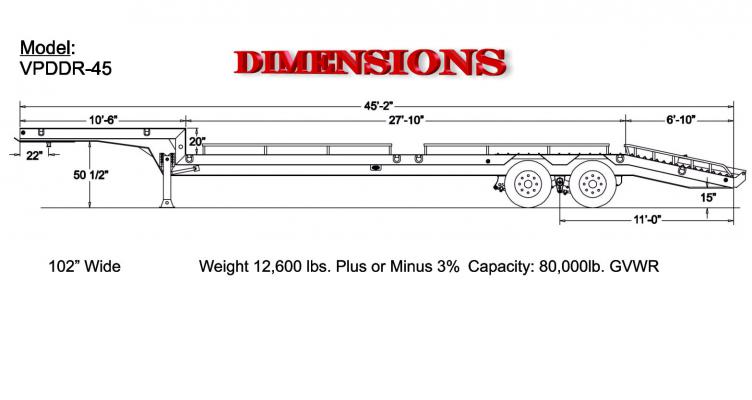

Model VPDDR-45
Dimensions 45' L x 102" W
10'-6" upper deck
28' rear deck
20" drop
Approximate Weight 12600 lbs. +/- 3%
GVWR 80000 lb.
