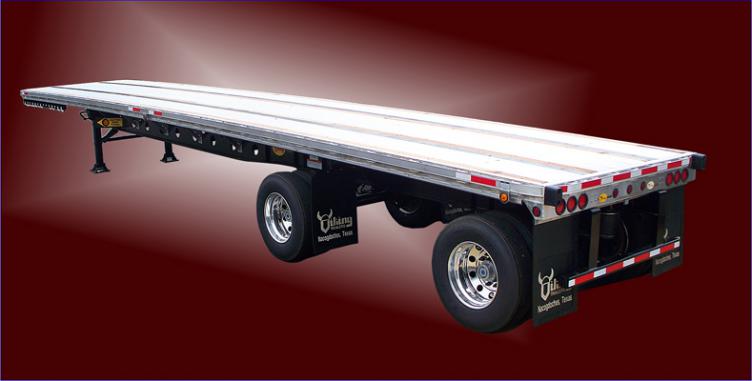

Transporter Combo Flat Deck Trailer


The Transporter Combo Flat combines quality and durability. Aluminum crossmembers, outriggers, siderail, bulkheads and flooring come together to make our lightest trailer produced. This trailer was designed to last while allowing you to haul the most. Capacity: 80,000 lb. GVWR.

Features

Mainframe

24” Fabricated main beams with 2” camber, 1/2″ x 5″ top and bottom flange, 3/16″ web welded on both sides with weight reduction holes. All flange and web material is high strength steel.

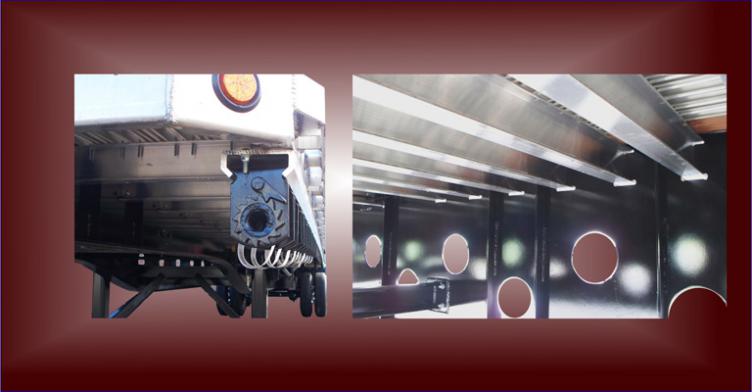

Crossmembers

4″ Extruded aluminum I beam on 16″ centers with single coil package.

Kingpin

2″ SAE kingpin, 1/4″ kingpin plate, 36″ kingpin setting (standard).

Siderails

6″ Extruded aluminum with stake pockets on 24″ centers. 3/8″ x 3″ aluminum rubrail with double pipe spools.

Suspension

(2) Hendrickson® INTRAAX AAT 25K unitized air ride suspension (dump valve included on rear axle).

Axles

(2) 25,000 Lb., 5-3/4” round (included with suspension).

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.

Wheels

8.25 x 22.5, Aluminum, 10 Hole disc, hub piloted (polished finish on the outside and machine finish on the inside).

Tires

11R x 22.5 Radials

Landing gear

2 Speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard).

Finish

Steel components are shotblasted, epoxy primed & painted with a high solid polyurethane paint. Colors: black or red (standard) optional colors available.

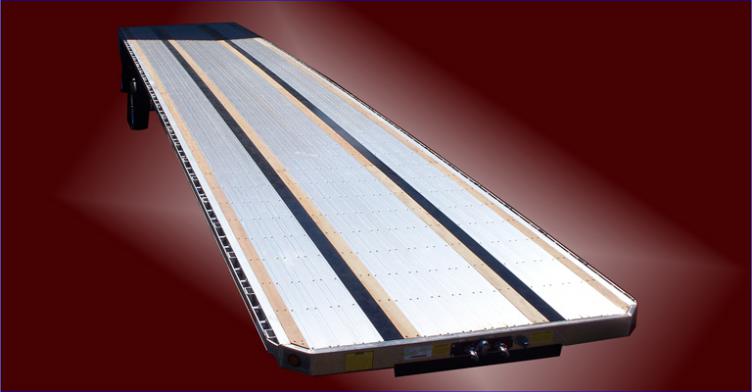

Floor

1-1/4″ Extruded aluminum with 4 apitong nailing strips.

Lights

7-Way main receptacle, sealed wiring harness with 3 red (tail / stop / turn) rubber mounted LED lights with a 3 light center cluster, 5 clearance lights per side including mid-turn.

Tandem

10′ 1″ Spread axle set from the of the trailer (Optional settings available).

Tiedowns

(12) Sliding winches on winch track located on the roadside.

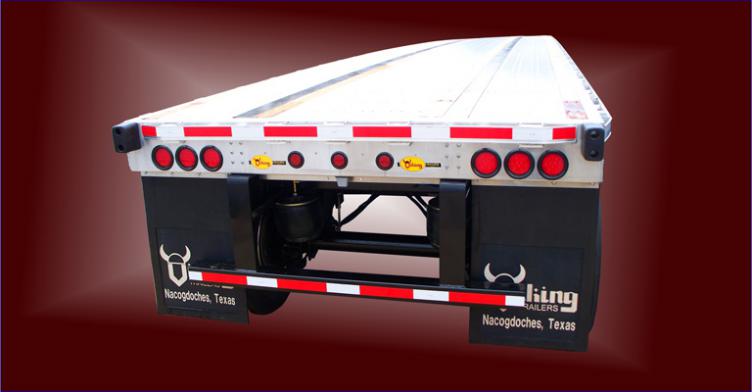

Rear bumper

DOT certified rear under ride guard/bumper with high visibility reflective conspicuity tape and rubber dock bumpers.

Options

  • Spring or air ride slider
  • Spring suspension
  • Spare tire carrier
  • 24″ x 24″ x 60″ Aluminum tool box
  • 48″ front bulkhead
  • Longer and shorter lengths
  • Front and rear stake pockets
  • 3-wheel lift kit

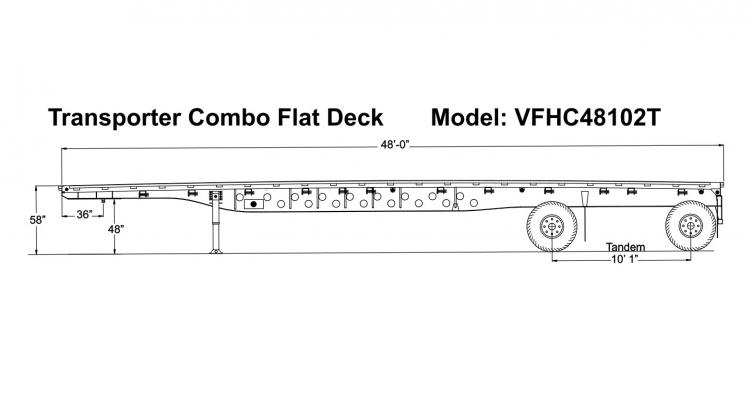

Model VFHC48102
Dimensions 48' long x 102" wide
Approximate Weight 10500 lbs. +/- 3%
GVWR 80000 lbs.
