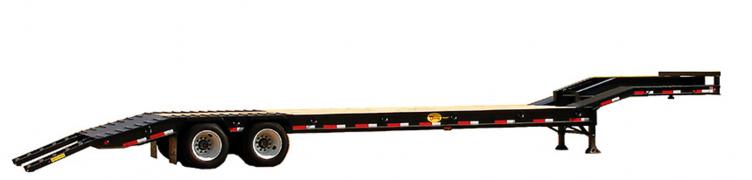

35 Ton Skidder Lowboy Trailer


The 35 Ton “Skidder” is one of the most versatile trailers on the market. Though designed specifically for the Log Skidders used in the forestry and logging industry, this trailer is versatile enough to accommodate a variety of heavy equipment. The Skidder trailer has proven itself in the Construction and Petroleum industry as well as the Forestry industry as a first choice for transporting equipment and materials from jobsite to jobsite. Capacity: 86,000 lb. GVWR.

Features

Mainframe

16″ Fabricated main beams, 1/2” x 6” top flange, 3/4” x 6” bottom flange with 1/4” web welded on both sides. All flange and web material is high strength steel.

Crossmembers

8″ x 6.5# Jr. I beam on 20″ centers.

Kingpin

2″ SAE kingpin, 3/8″ kingpin plate, 84” swing clearance, 20″ kingpin setting.

Siderails

12 x 20.7# Structural channel; 8 x 8.5# structural channel on the neck.

Suspension

HUTCH® H9700T three point spring suspension with hi-arch heavy duty 3 leaf springs.

Axles

(2) 25,000 lb., 5” round, 5/8” wall.

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).

Tires

255/70R x 22.5 Radials.

Landing gear

2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard).

Finish

Shotblasted and painted with a high solid polyurethane paint. Colors: black or red (standard).

Floor

2″ Nominal oak (standard), 1/4” tread plate with 1” traction bars over tandems and 1/4” tread plate on motor grader ramps.

Lights

7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 Lights per side including mid-turn.

Tandem

Set at 110” from the rear of the dovetail.

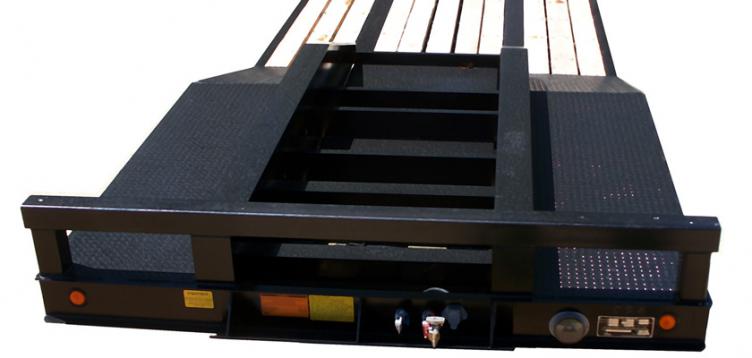

Dovetail

Metal covered, 1/4” tread plate and 1” traction bars (Optional open floor dovetail with inverted angle iron for self cleaning).

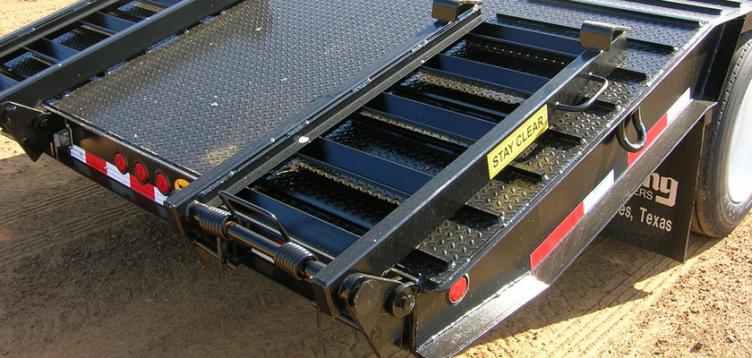

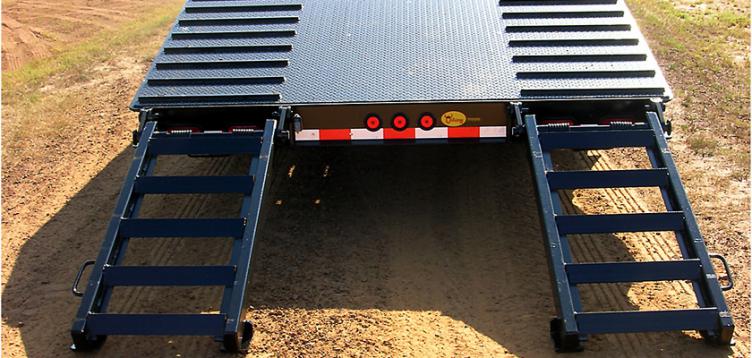

Loading ramps

(2) 4′-6″ Lay flat ramps with torsion springs. Motor grader ramps on front deck.

D-rings

18 Total (4) 1″ on front deck, (14) 1″ on rear deck.

Options

  • Single point suspension (35-ton model only)
  • Air ride suspension
  • Flooring: apitong, shiplap pine, and steel sheeting
  • Weld on winches
  • Fold out outriggers
  • Width increase to 9′
  • Longer and shorter trailer lengths
  • Hydraulic assisted ramps
  • Third ramp located in the center for 3-wheel machines
  • Between the beam tool box
  • Epoxy primer and custom colors available
  • 6′ Stand up ramps
  • 3-Axle 40-ton capacity

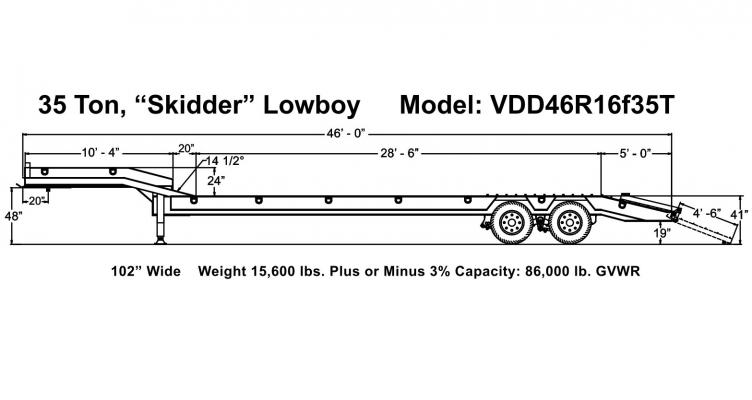

Model VDD46R16F35T
Dimensions 46' long x 102" wide
41" rear deck height
28'-6" flat load deck area
Approximate Weight 15600 lbs. +/- 3%
GVWR 86000 lb.
