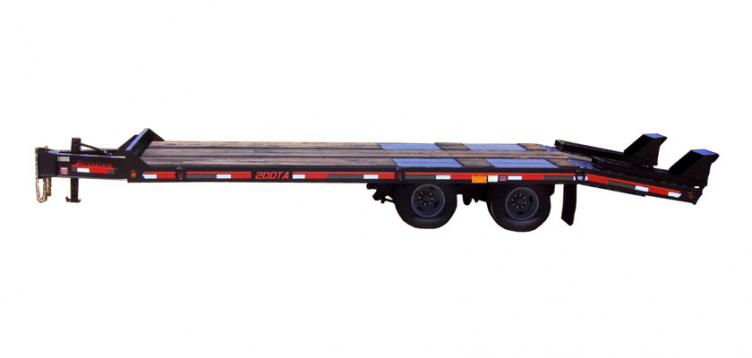

Interstate Model 20DT



Features

Mainframe

Pierced main beam construction with one piece interlocking crossmembers; W12″ x 16 lbs. per ft., grade 50; Hi-tensile.

Crossmembers

6″ I-beam x 3.7 lbs. per ft.; grade 50 Hi-tensile on 24″ centers.

Siderails

C8″ x 11.5 lbs. per ft.; grade 50 Hi-tensile

Suspension

Hutch 9700 multi-point spring with radius rod axle tracking adjustment, 44,000 lb. capacity

Axles

Heavy Duty (2) Each 10,000 lb.

Brakes

Heavy Duty Electric 12-1/4″ x 4″

Wheels

8 hole steel disc

Tires

(6) 235/80R16, (E) Capacity: 3,000 lbs.

Landing Gear

Heavy Duty 12,000 lb. Jack-Drop Leg

Finish

Black acrylic enamel; rust prohibitive undercoating

Floor

2″ nominal oak secured to crossmembers with 5/16″ torque screws.

Lights

12 volt DOT & ICC approved; all lights are LED type and flush mounted in rubber grommets; wiring is run in flexible neoprene jacket and modular in design; 7-way plug.

Tiedowns

(8) heavy duty D-rings, 4 per side.

Loading Ramps

58″ x 21.5″ traction with spring assist

Options

  • Yellow, white, gray or red acrylic enamel.

Model 20DT
Dimensions 29' long
24' (19' flat deck + 5' beavertail) deck length
8' deck width
34" deck height (unloaded)
Approximate Weight 5000 lbs. +/- 3%
GVWR 20000 lb. capacity tag-along trailer with beavertail & ramps (at 55 MPH GVWR 25900 lbs.)
