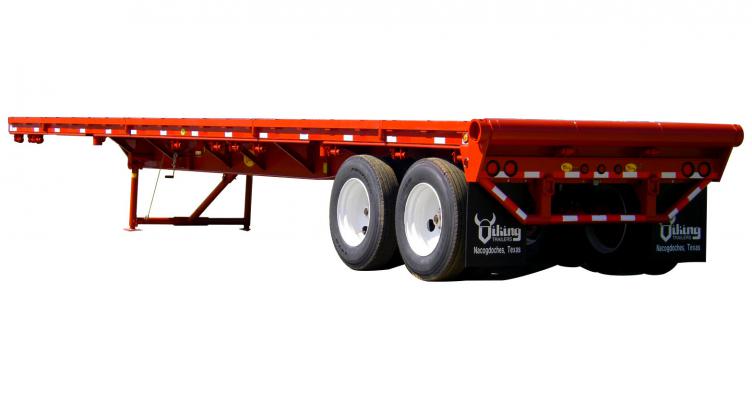

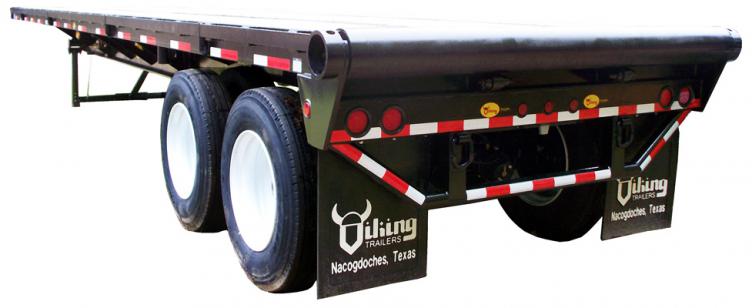

42′ Oilfield Float Trailer


For use in the oil and gas industry, the 42′ float provides quick and easy loading with retractable landing gear and pick-up eye for winch use. The heavy duty 8-5/8″ tailroller assembly handles the heavy loads and is designed with service in mind. The bearings are replaceable and greasable. The 42′ Oilfield Float makes it easy to get around worksites and will hold up to the task. This trailer is built Viking tough! Capacity: 100,000 lbs. GVWR.

Available Exclusively Through:

Moore Truck & Equipment Company
10400 Wallace Lake Road
Shreveport, LA
318.688.5395

Features

Mainframe

24” Fabricated main beams, 3/4″ x 6″ top and bottom flange with 3/16” web welded on both sides, 3/8″ web in the neck. All flange and web material is high strength steel.

Crossmembers

6″ x 3.7# Jr. I beam on 12″ centers.

Kingpin

2” SAE kingpin, 3/8″ kingpin plate, 24″ kingpin setting (standard).

Siderails

8″ x 11.5# Structural channel with 1/4” formed stake pockets. 3/8” x 3” Rubrail with double pipe spools.

Suspension

Watson-Chalin® 50,000 lb. 7 leaf single point spring suspension.

Axles

(2) 25,000 Lb., 5” round, 5/8” wall.

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (2S/1M) ABS on one axle.

Wheels

8.25 x 24.5, Steel 10 hole disc, hub piloted (color: white).

Tires

11R x 24.5 Radials.

Landing gear

Heavy duty folding schedule 80 pipe, winch retractable.

Finish

Shotblasted and painted with a high solid polyurethane paint. Colors: black or red (standard). Optional: epoxy or zinc-rich primer available.

Floor

Flush mounted 1-3/8″ Apitong (standard) smooth steel plate located over the tandem areas.

Lights

7-Way main receptacle, sealed wiring harness with rubber mounted LED lights. 3 Lights per side including mid-turn.

Tandem

60″ Fixed tandem setting.

Pin pockets

(8) Total (4) per side.

Pipe pockets

(4) Total (2) per side.

Tail roller

8-5/8″ Tail roller with (2) sets of overload rollers.

Rear bumper

Heavy duty pipe bumper with high visibility reflective conspicuity tape.

D-rings

(2) Located at the vertical supports on the rear bumper for towing.

Options

  • Inverted fifth wheel
  • 1″ D-rings
  • Sliding winches
  • Rear pull loop

Model VFO42102
Dimensions 42' long x 102' wide
48" Fifth wheel height
56" Deck height
Approximate Weight 16240 lbs. +/- 3%
GVWR 100000 lbs.
