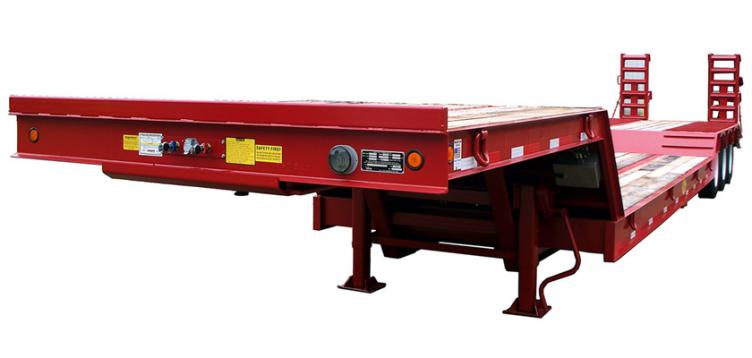

The 40 Ton Double Drop shares the same durability and capacity of the 40 Ton Loadhandler. This trailer also gives you the ability to haul loads that normally exceed the height limit on a 36″ to 41″ deck height trailer. Rear loading capability increases the versatility of this trailer. Pull up and drop the ramps. Load and secure the load and you are ready to go. The 21′-4″ load deck accepts a large variety of track and wheel machines keeping the height under the legal limit. Capacity: 99,960 lb. GVWR.
Features
Mainframe
18″ Fabricated beams, 1/2″ x 6: top flange, 3/4″ x 6″ bottom flange with 1/4″ web welded on both sides. All flange material is high strength steel.
Crossmembers
8″ x 6.5# Jr. I-beam on 16″ centers.
Kingpin
2″ SAE kingpin, 3/8″ king pin plate, 84″ swing clearance, 15″ kingpin setting (standard)
Siderails
12″ x 20.7# structural channel, 8″ x 8.5# on neck.
Suspension
HUTCH H9700TRI four point spring suspension.
Axles
(3) 25,000 lb., 5″ round, 5/8″ wall.
Brakes
16-1/2″ x 7″, Type 30/30 brake chambers, outboard drums, Meritor WABCO (4S/2M) ABS on one axle.
Wheels
8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white)
Tires
255/70R x 22.5 Radials
Landing Gear
2 Speed gear with 62,500 lb. lift capacity; 200,000 lb. static capacity (standard)
Finish
Shot blasted and painted with a high solid polyurethane paint. Colors: Black, red (standard)
Floor

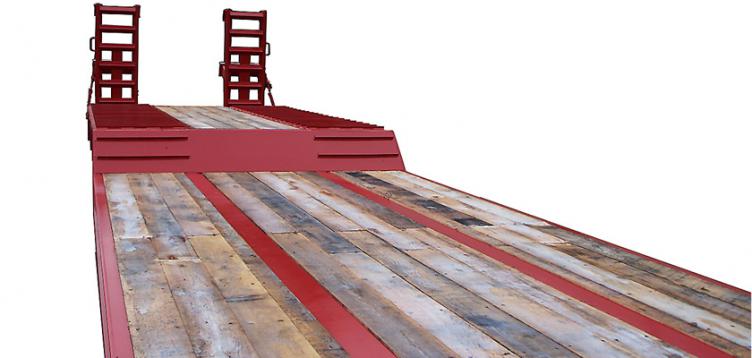

2″ Nominal oak (standard). 1/4″ tread plate and 1″ traction bars over tandems. 1/4″ smooth plate on transition to upper deck.
Lights
7-Way main receptacle, sealed wiring harness, rubber mounted LED lights. 3 lights per side, including mid-turn.
Tandem
Set at 108″ from the rear of the dovetail
Dovetail
3 ft. metal covered with 1/4″ treated plate and 1″ traction bars. Optional open floor dovetail with inverted angle iron for self-cleaning.
Loading Ramps

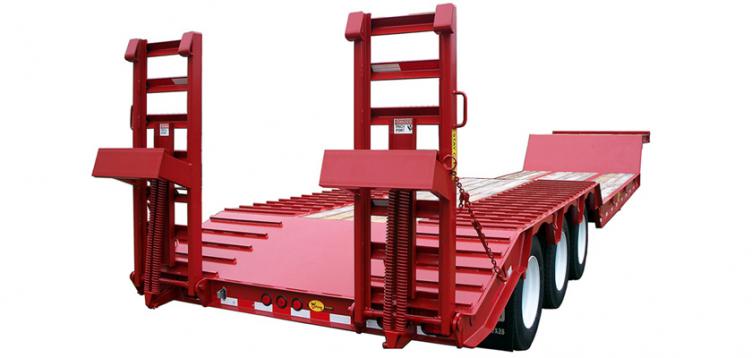

(2) 6′ Stand up ramps with double compression springs on each ramp that assist in raising and lowering.
D-Rings
(16) Total (4) 1″ on front deck, (12) 1″ on rear deck and dovetail
Options
- Single point suspension
- Air ride suspension
- Flooring: apitong, shiplap pine, and steel sheeting
- Weld on wenches
- Fold out outriggers
- Width increased to 9′
- Longer and shorter lengths
- Hydraulic assisted ramps
- Third ramp located in the center for 3-wheel machines
- Between the beam tool box
- Epoxy primer and custom colors available.
