60 Ton VLO 4-Axle Oilfield Trailer


The oil and gas industry has always required heavy hauling equipment. Everything used in the industry is heavy. The ability to move heavy sections of equipment from one location to another has always been the method. This trailer is designed to do just that. With a 60-Ton Rating and the ability to winch up over the 8-5/8″ tailroller, equipment can be loaded quickly and transported safely to the next location. The heavy duty 8-5/8″ tailroller is designed with service in mind. The bearings are replaceable and greaseable. If you’re loading skids, rig sections, or crew quarters, this trailer does it all. Built to last, built Viking tough. Capacity: 150,000 lb. GVWR.

Available exclusively through:

Moore Truck & Equipment Company
10400 Wallace Lake Road
Shreveport, LA
318.688.5395

Features

Mainframe

20″ Fabricated main beams with 1-1/2” camber, 3/4″ x 6″ top and bottom flange, 3/8” web welded on both sides, fixed neck with a 6-5/8″ neck roller. All flange and web material is high strength steel.

Crossmembers

10″ x 15# I beam on 18″ centers.

Kingpin

2″ SAE kingpin, 3/8″ plate with (3) drop-in kingpin locations for the following swing clearances, 120″, 102″, and 90″.

Siderails

20″ Fabricated beam, 1/2” x 5” top and bottom flange, 1/4” web welded on both sides

Suspension

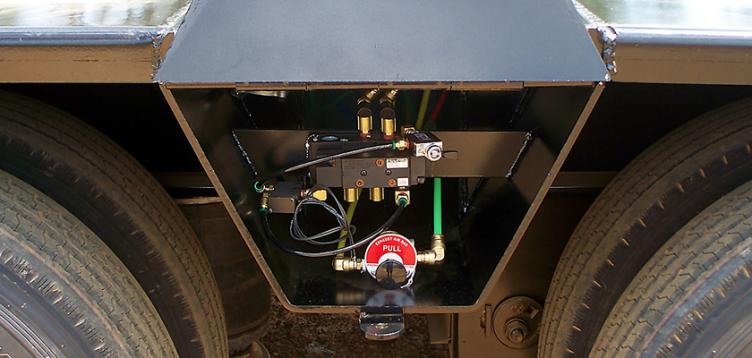

Hendrickson® HT250US air ride with front axle lift, manual dump valve and leveling valve.

Axles

(4) 25,000 Lb., 5” round, 5/8” wall, 77-1/2” track.

Brakes

16-1/2” x 7”, Type 30/30 brake chambers, outboard drums, Meritor WABCO® (4S/2M) ABS on two axles.

Wheels

8.25 x 22.5, Steel 10 hole disc, hub piloted (color: white).

Tires

255/70R x 22.5 Radials.

Landing gear

None, outfitted with front half pipe with heavy duty pick-up eye.

Finish

Shotblasted and painted with a high solid polyurethane paint. Colors: black or red (standard.) Optional, epoxy or zinc-rich primer available.

Floor

1-3/4″ Apitong (standard), smooth steel plate over the axles, metal tread plate recessed in the neck.

Lights

7-Way main receptacle, sealed wiring harness with rubber mounted LED lights. 5 Lights per side including mid-turn.

Axle setting

Rear axle set at 27” from the rear of the trailer with 57” axle spacing.

Pin pockets

(8) Total (4) per side including tail roller.

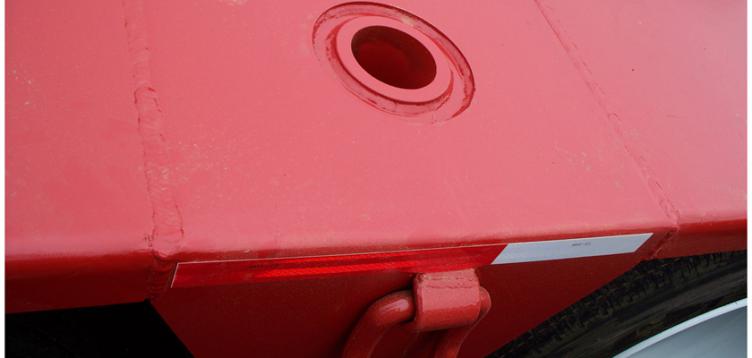

Pipe pockets

(4) Total (2) per side.

Tail roller

8-5/8″ Tail roller with (2) sets of overload rollers.

Neck roller

6-5/8” Neck roller.

Rear bumper

Heavy duty push bumper with drag loops and high visibility reflective conspicuity tape.

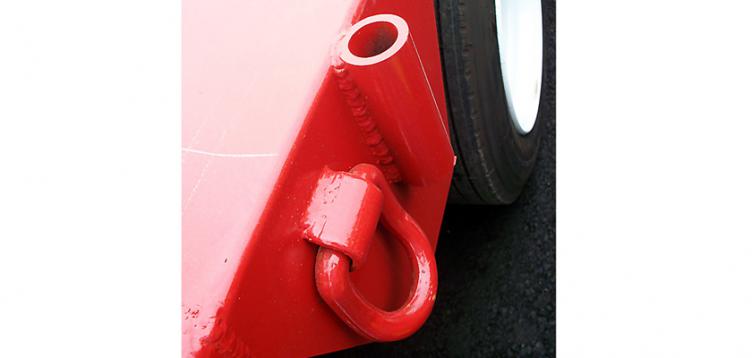

D-rings

(18) (9) Each side.

Options

  • Pop-up deck rollers
  • 50-Ton 3-axle configuration
  • Aluminum wheels

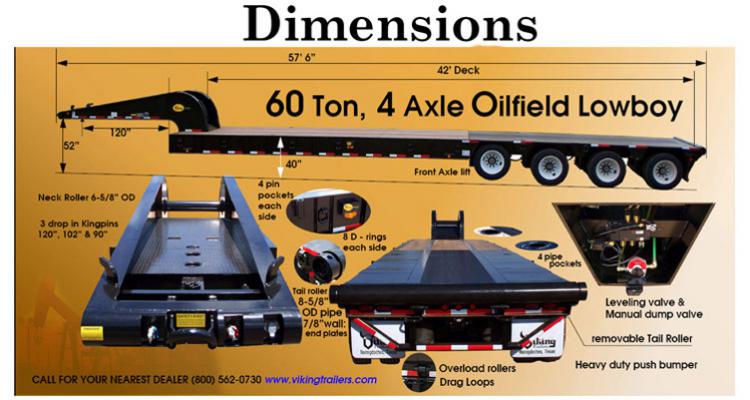

Model VLO57102-4-60T
Dimensions 57' long x 102" wide
42' deck length plus roller
40" deck height
52" fifth wheel height
Approximate Weight 27100 lbs. +/- 3%
GVWR 150000 lbs.
